Flanged steel cranes: description, application areas
Ball valves with flange type connection are considered to be popular and in demand in various fields of pipe fittings. Made of steel, the products have proven themselves as durable, wear-resistant and reliable equipment. The device effectively blocks the flow of gas, liquid, steam and other substances in domestic and industrial highways. Flanged steel cranes are integral elements of the water and gas supply system. They are often used in the network of air conditioning, ventilation and steam condensation.
Description of Flanged Steel Cranes
Flanged cranes are available in standard or non-standard configurations. As a rule, the steel body of the device has a straight or spherical shape. The product is treated with an anti-corrosion coating. The kit includes a manual gearbox with a set of seals. Install the taps on the flanges. A wide range of models is presented on this website, where the operating parameters are indicated (control type, through diameter, operating pressure values). The product models are adapted to work at temperatures from -60 0 C to 200 0 C and at pressures up to 25 MPa.
Design features of the reinforcement

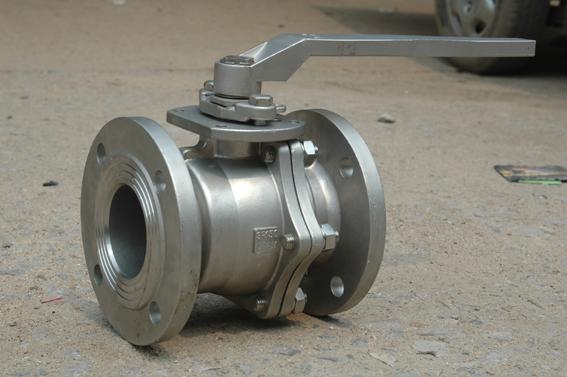

Externally, the device consists of two circular disks with a cylindrical mount and a crane. The shut-off valve has a solid body, which is stationary, and a rotating element (ball). The ball valve has various parameters of the flow section.
There are 2 solutions to the arrangement of the shutter:
- fixed – the element is mounted on special supports and fixed by means of axial projections. By pressing the seat against the locking trunnions, the valve is directly controlled;
- floating – the ball valve moves easily inside the housing, as a result, the flow is blocked by pressing it against the seal as a result of the pressure of the medium.
The parameters of the working environment with aggressive substances must ensure corrosion resistance of the elements of flange cranes made of steel. Therefore, during operation, the steel reinforcement is additionally processed, which makes it possible to optimally increase the resistance of the equipment to corrosion processes.
Steel cranes: main advantages
Flange valves made of steel for pipelines of various purposes have the following advantages:
- durable, wear-resistant, reliable and sealed construction;
- easy installation and maintenance;
- low hydraulic resistance;
- stable operation of the equipment in various operating conditions;
- due to the elasticity of the seals, the valve hermetically blocks not only flows at low pressures, but also at high and pressure drops;
- depending on the purpose, the fittings are made with a collapsible or with a welded body;
The design of the products and the performance characteristics of the cranes are carried out in accordance with international standards.
Areas of application
Valves are used in the installation of gas pipelines, pipelines, pipelines with oil media and compressed air, oil pipelines, cooling systems. The devices are indispensable in various industries, shipbuilding and agriculture.
Steel cranes are used in pipelines of various facilities. Among them:
- water supply system;
- transport gas pipelines;
- thermal power plant, nuclear power plant;
- storage facilities intended for natural gas storage;
- heat and gas supply systems;
- oil and gas, metallurgical, chemical, food industry, etc.
The pipeline crane is designed for efficient opening and complete closing of gas, liquid media, and mixtures flows. Flanged ball valves provide fast and tight flow overlap in a given pressure range.
